Interactive Image Creator

Create clickable oval shapes on an image.

  1. Click Add Circles icon in vertical toolbar.
  2. Click on image and start to draw.
  3. Right click to complete.
  4. For modifying the size, you can:
    • Click Select / Drag and object icon in horizontal toolbar
    • Select a circle on the map
    • Manually adjust the size of the circle by dragging the stroke

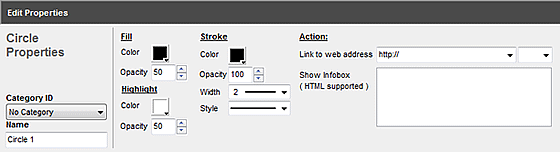

  5. Edit circle in Circle Properties panel at the bottom of iiCreator editor
Category IDAssign the category
Fill Pick a color for the oval shape
Stroke Color, thickness and style of stroke (e.g. solid, dotted, dashed)
Highlight The apperance in highlight status.
Link to web address - URL of webpage to open
- Select link target:
New Window / Same Frame / Parent Frame / Root Frame
Show Infobox- Insert content (e.g. text, image, video, table, etc.)
- HTML code is supported

If you are not familiar with coding, you could add infobox content using Rich Text Editor.
  • Select "Rich Text Editor"
  • Mouse click in the space below, and "Infobox Wizard" shows
  • Select an infobox layout
  • Upload an image and edit the size of it
  • Enter and edit text content using tools in the menu bar
  • Click "OK" to complete the editing
